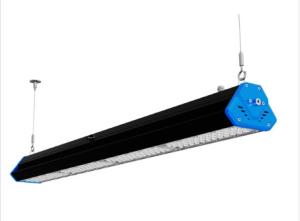

6063 Aluminum 150W IP65 LED Linear Low Bay Light 150LPW

Name: 6063 Aluminum 150W IP65 LED Linear Low Bay Light 150LPW
Brand: DUALRAYS(OEM available)
Price: 1 USD

Wholesale 6063 Aluminum 150W IP65 LED Linear Low Bay Light 150LPW from china suppliers

Brand Name : DUALRAYS(OEM available)

Model Number : DR-LB150-FG3XX

Certification : CE, ROHS, TUV/GS, LM79, LM80

Place of Origin : Shenzhen, China

MOQ : 1PCS

Price : Please inquiry for latest price

Payment Terms : L/C, T/T, Western Union, paypal

Supply Ability : 120000pcs/month

Delivery Time : 5-15 bussiness days

Packaging Details : Netural Package/OEM and ODM Package Available

Input Voltage : AC100~277V 50/60Hz

Driver : Meanwell/Sosen

LEDs : EPISTAR

Efficiency : 150LPW

PF : 0.98

CCT : WW:3000±200K NW: 4000±200K DW:5700±200K CW: 6500±200K

CRI : >80Ra

Body : Aluminium alloy+PC

Package : Normal export carton box

Applications : Factory/Warehouse/Workshop/Exhibition center...

Contact Now

150W IP65 LED Linear Low Bay Light Heavy 6063 Aluminum PC Meanwell Driver

Options:

> Driver: Sosen, Meanwell ELG/HLG;

> Controls and Dimming: 1-10V, DALI, Motion sensor,Daylight sensor,Zigbee and Emergency;

> Unit Combination : 2 Rows or 3 Rows Combination with Bracket;

> Lens : Symmetric 30°/60°/90°,Asymmeric 30*70°/80*155/60*90° beam angle;

> Installation: Suspension, Wall Mounting;

> Factories / Warehouses / Supermarket

> Exhibitions / Showrooms / Animal Farm

> Barns and Riding Halls / Logistic Center

> High Rooms and Halls / Stadium / Chemical Plant

> Traditional lamp replacement

Model No.	DR-LB050-FG1XX	DR-LB100-FG2XX	DR-LB150-FG3XX	DR-LB200-FG4XX	DR-LB300-FG3XDX
System Watts/W	50W	100W	150W	200W	300W
System Efficiency/LPW	140LPW
Lumen Output/lm	7.000±5%	14.000±5%	21.000±5%	28.000±5%	42.000±5%
Rated Input Voltage/V	AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source	SMD3030
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	30°/60°/90°/3070°/80155/60*90°
UGR	<25
Surge Protection	6~10KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Meanwell ELG/HLG,Sosen
IP Rating	IP65
Dimming(Optional)	0/1-10V/DALI/Zigbee
Sensor(Optional)	Motion Sensor,Daylight Sensor
Emergency(Optional)	Available (30W @ 3Hrs for Standard)
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard)
Material	Aluminum+PC
Lifespan/hrs	70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Installation(Optional)	Loop Hanging, Ceiling Mounting, Wall Mounting
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Character/Power	100W	150W	200W	240W	300W
A / mm	284.8	542.9	801	1058.6	801
B / mm	134	134	134	134	268
C / mm	110.5	110.5	110.5	110.5	110.5

6063 Aluminum 150W IP65 LED Linear Low Bay Light 150LPW

DALI Device
6063 Aluminum 150W IP65 LED Linear Low Bay Light 150LPW

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

6063 Aluminum 150W IP65 LED Linear Low Bay Light 150LPW

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-HB100-EGXP	8.3	325490380	9.2	4PCS/CTN
DR-HB150-EGXP	13.8	577490380	15.2	4PCS/CTN
DR-HB200-EGXP	19.5	828490380	21.2	4PCS/CTN
DR-HB240-EGXP	30.2	1180490380	32.4	4PCS/CTN
DR-HB300-EGXP	39.5	828980380	42.4	2PCS/CTN
